Basic Device Operation
The VoqX is the ONLY smart stethoscope that combines advanced auscultation capabilities with embedded Artificial Intelligence (AI) algorithms for the detection of heart and lung abnormalities. The device’s ability to detect and utilize infrasound (sounds below the human hearing range) for diagnosis represents a significant innovation in medical devices used for routine heart and lung examinations.
VOLUME CONTROL
- Press the side buttons on the headset to control volume level.
- Preferably use a mid-level volume option.
- See the volume indication on the left part of the upper bar.
HAPPENS AUTOMATICALLY:
LOCK
To conserve battery, the device locks after 10 seconds in a horizontal position or when placed on the clinician’s neck.
When locked, auscultation is disabled.
To unlock and resume auscultation, position the device upright.
SLEEP MODE
The device enters Sleep mode after 60 seconds of inactivity.
While in Sleep mode – the status light will blink
To reactivate – click the press the home button.
AUTO TURN-OFF
After 40 minutes of inactivity – the device will turn-off automatically.
MAIN SCREEN
Tap to select preferred auscultation mode
HEART SELECTION
LUNGS SELECTION
STATUS BARS
1 – Device Locked (headset position)
2 – Volume control(through side buttons)
3 – BOOST status (on/off)
4 – Bluetooth is ON
5 – Battery status
6 – AI status (on/off)
Basic Device Operation
The VoqX is the ONLY smart stethoscope that combines advanced auscultation capabilities with embedded Artificial Intelligence (AI) algorithms for the detection of heart and lung abnormalities. The device’s ability to detect and utilize infrasound (sounds below the human hearing range) for diagnosis represents a significant innovation in medical devices used for routine heart and lung examinations.
THE HOME BUTTON
POWER ON
Press the home button for 2 seconds until a blue light appears
POWER OFF
Press the home button for 3 seconds until the light turns off
GO HOME
Click the home button to reach the main screen (will be further elaborated)

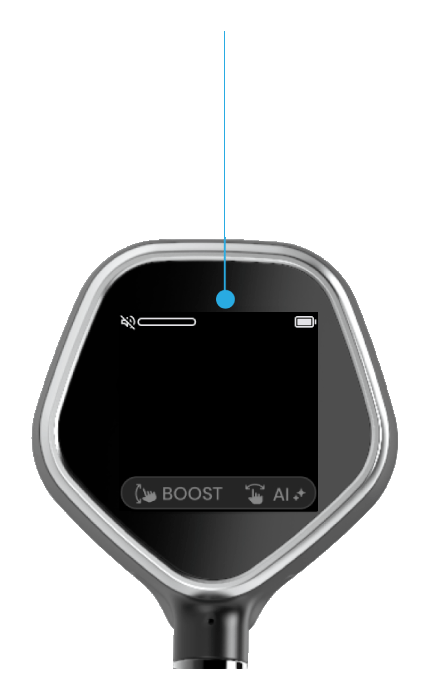

VOLUME CONTROL
- Press the side buttons on the headset to control volume level.
- Preferably use a mid-level volume option.
- See the volume indication on the left part of the upper bar.
HAPPENS AUTOMATICALLY:

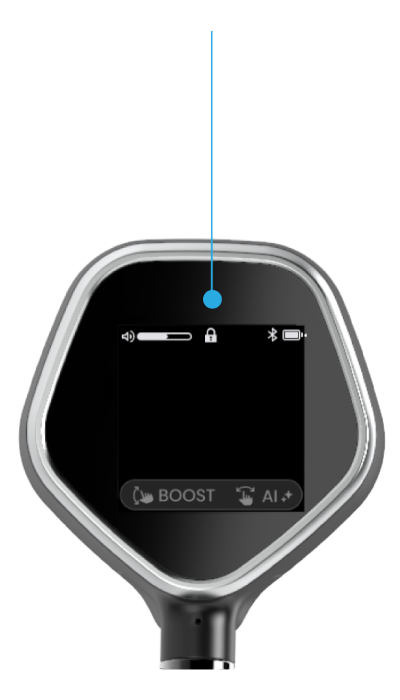

LOCK
To conserve battery, the device locks after 10 seconds in a horizontal position or when placed on the clinician’s neck.
When locked, auscultation is disabled.
To unlock and resume auscultation, position the device upright.
SLEEP MODE
The device enters Sleep mode after 60 seconds of inactivity.
While in Sleep mode – the status light will blink
To reactivate – click the press the home button.
AUTO TURN-OFF
After 40 minutes of inactivity – the device will turn-off automatically.
MAIN SCREEN
Tap to select preferred auscultation mode
HEART SELECTION
LUNGS SELECTION
STATUS BARS
1 – Device Locked (headset position)
2 – Volume control(through side buttons)
3 – BOOST status (on/off)
4 – Bluetooth is ON
5 – Battery status
6 – AI status (on/off)
